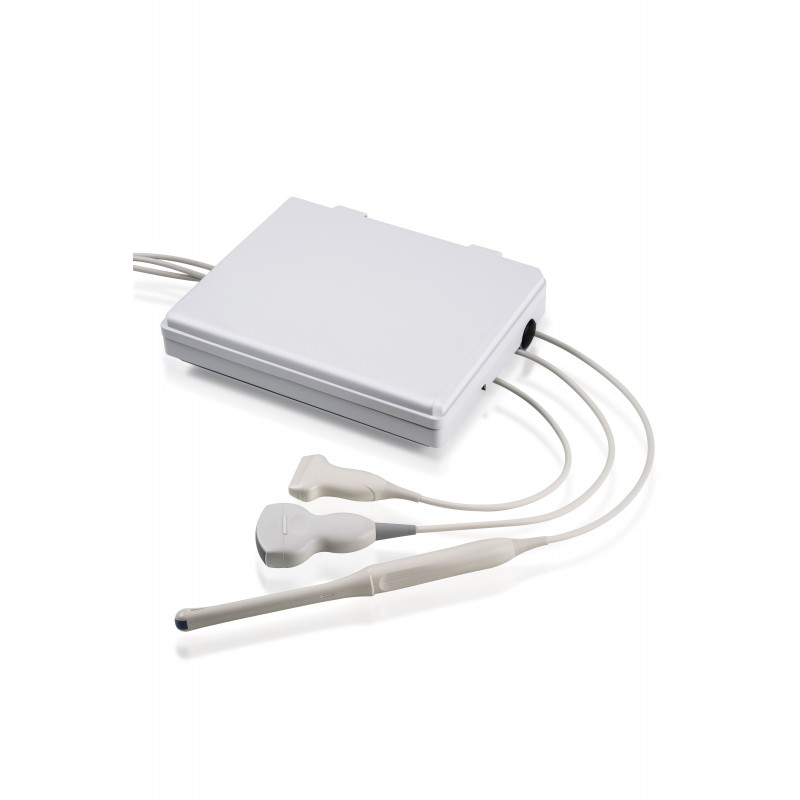

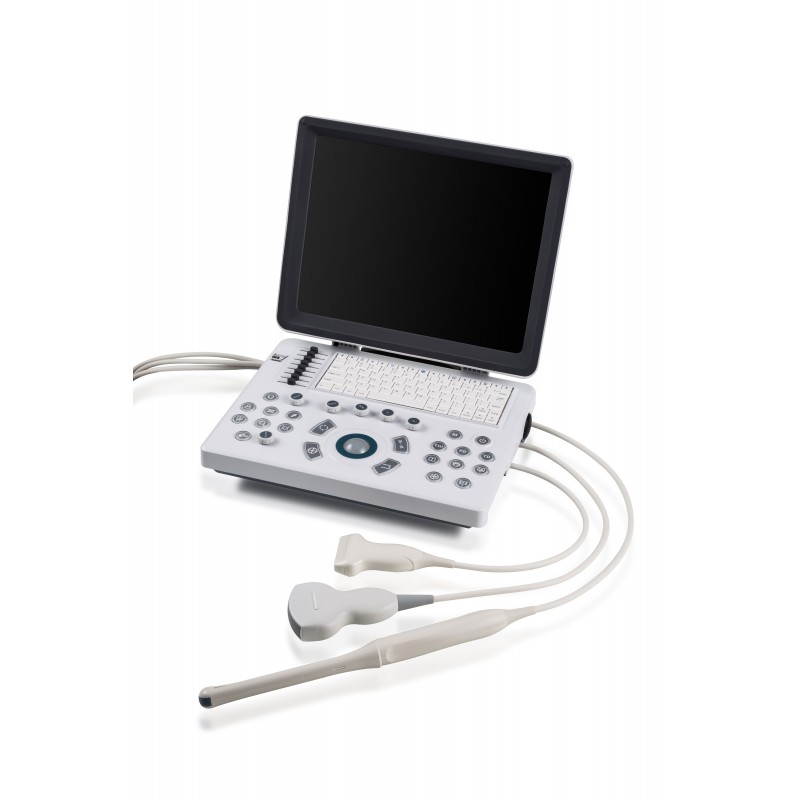

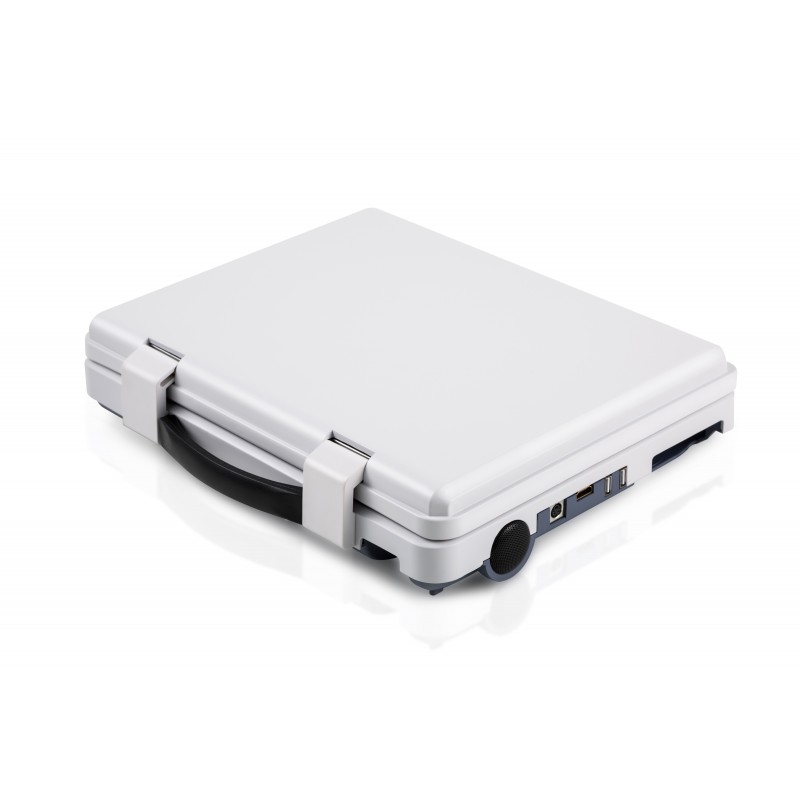

AP-104300-200

PORTABLE ECHOGRAPH

• Display Modes: B, B&M, 2B, 4B,

Gray scales: 256

• Monitor: Screen 15” LED

• Probe frequency : 2 ~ 11MHz

• Scanning Depth : 310mm

• Digital technology : Wide-range imaging , panoramic focusing technology , rolling M technology

Image Processing :

• Pre-processing : Cloud processing technology, 8-segment TGC, Gain ( B&W), Dynamic range, Persistence, M soften, Noise suppression,

• Post processing : Image enhancement, gray map, Colorize map, Tissue Specific Imaging, left right reverse, up/down reverse

• Software: Cine loop memory 340 frame

Zoom: stepless zoom for active image

• THI : Tissue harmonic Imaging

•  Qopt : One-key optimize

• Dicom 3.0

• Print : report print for text / graph / image

Measurements:

B mode : Distance, angle, area, volume, trace length, distance, ratio.

M mode : Distance, time, slope, heart rate

Software : Abdomen, OP, Gynecology, Cardia, Small parts,

Probe connector : 3 active transducer

Peripheal ports : 2 USB ports, 1 network port, 1s-video port

Supplpy : 100-240V / 100V, Power : 50Hz / 60H, 100VA,  Li-ion battery

Circumference, area/perimeter, volume, Heart rate, pregnant weeks, fetal weight…..

Use for gynecology, heart, abdomen,

Storage : Massive image storage capacity, external USB disk, SD card

Lateral resolution : ≤2mm (depth ≤130mm)

       ≤34mm (≤130mm depth≤180mm)

Longitudinal resolution :         ≤1mm ( depth≤130mm )

                                              ≤2mm ( 130mm ≤depth≤180mm )

Blind area : ≤3mm

Geometrical position distortion :        Lateral ≤5

                                                        Longitudinal ≤5

On screen display : Date, time, age, sex, Patient ID and hospital information, gain, focusing, comments, scroll, zoom setting

Software: Cine loop memory 340 frame OB & GYN & Cardiac software, OB report, 500 storage

Body marks: 84 body marks



Contact us

  • 50

    50 years of experience

  • Large distribution network

  • Quality technical services

More info

Delivered with :         1 Convex Probe 3 ,5

                                  1 Tube of gel Manual

In Option :   Linear Probe 7,5MHz

                    Micro- convex 6,5MHz

                    Trans-Vaginal Probe 6,5MHz

                    Micro- convex 5.0mhz

                    Micro- convex 3.5mhz
