AP-104310-3000

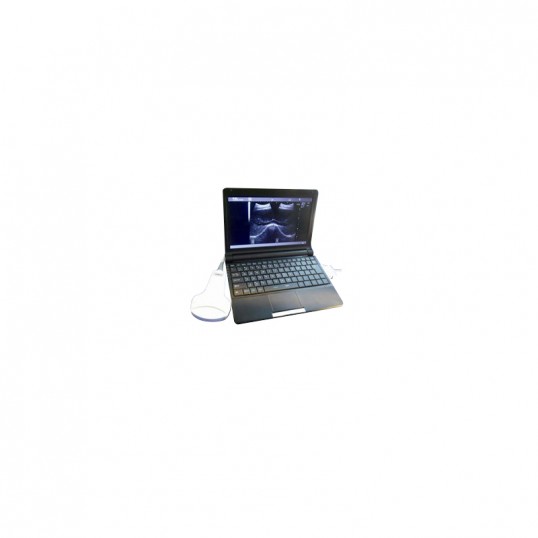

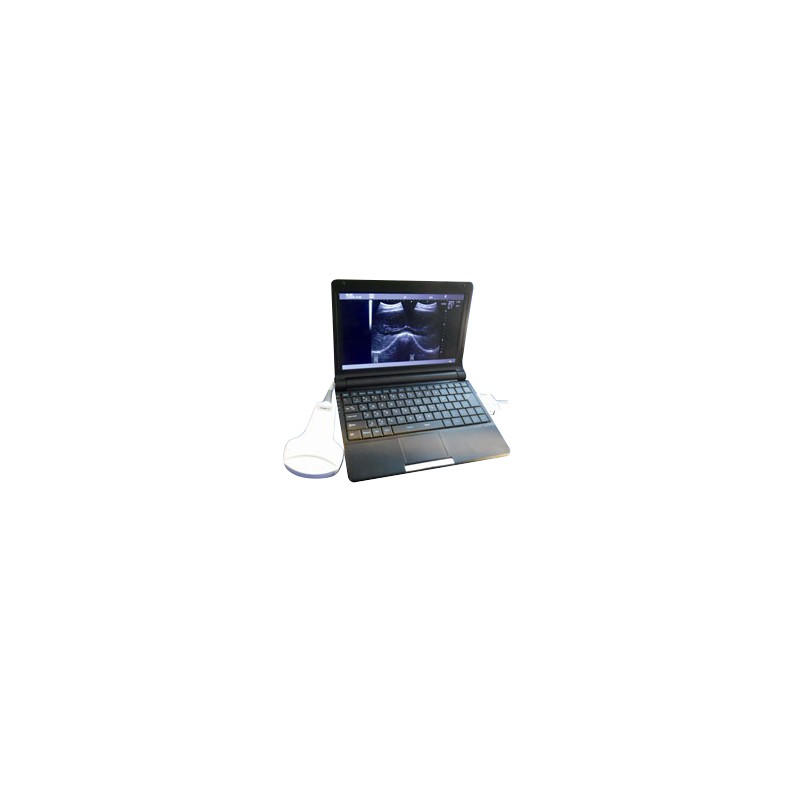

PORTABLE ULTRASOUND

• Use for gynecology, heart, abdomen,...

• Modes : B, B/B, 4B, B/M, M

• Gray scales : 256

• Monitor: Screen 10.1” high resolution TFT LCD

• Probe frequency : 2.5 ~ 10mhZ

• Probe connector : 1

• Storage : Massive image storage capacity, external USB disk, SD card

• Zoom: 0 ,8 - 0,9 - 1,0 - 1,1 - 1,2 - 1,3 - 1,4 - 1,5 - real time

• Lateral resolution : ≤3mm (depth ≤80mm)

                               ≤4mm (≤80mm depth≤130mm)

• Longitudinal resolution : ≤2mm ( depth≤80mm )

                                      ≤3mm ( 80mm ≤depth≤130mm )

• Scanning Depth : ≥160mm

• Blind area : ≤5mm

• Geometrical position distortion : lateral ≤15

                                                  Longitudinal ≤10

• On screen display : Date, time, age, sex, Patient ID and hospital information, gain, focusing, comments, scroll, zoom setting

• Image Processing :

    Pre-processing, continuously variable aperture, TGC, Edge enhancement, Dynamic filtering, Dynamic range, Frame correlation, smooth

    Post processing , black/white reverse, gray map. Edge enhancement, Image reverse Left/right, Up/down,

• Measurements: Distance, Circumference, area/perimeter, volume, Heart rate, pregnant weeks, fetal weight…..

• Software: Cine loop memory 192 frame OB & GYN & Cardiac software, OB report, 1024 storage

• Body marks: over 40 body marks

• Supplpy : AC 240V / 100V

• Power : 50Hz / 60Hz , Li-ion battery
