MO-100102-02

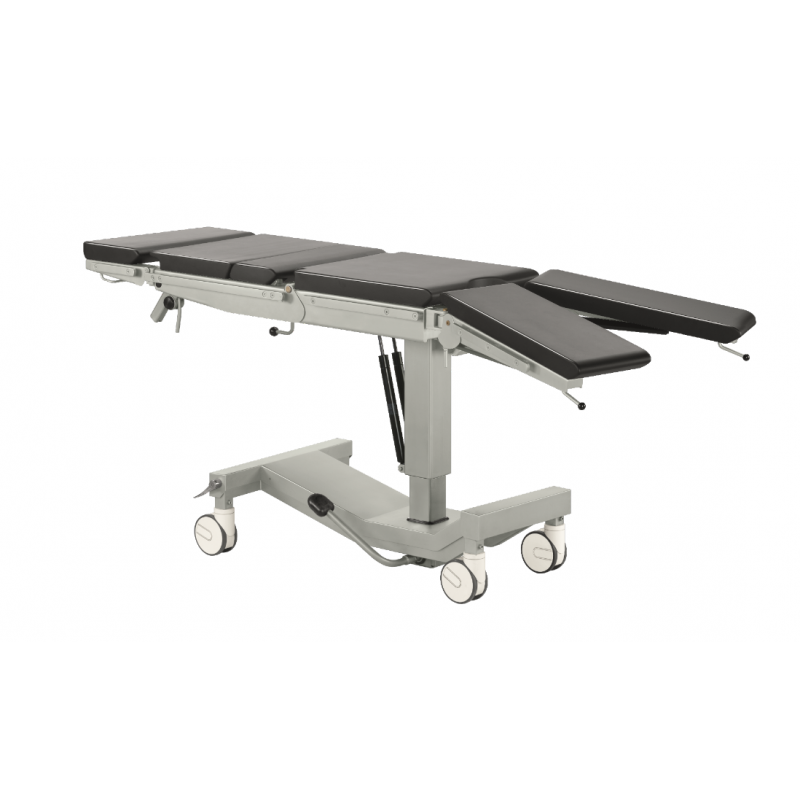

UNIVERSAL OPERATING TABLE

This table is functional, without electrical control, which eliminates the risk of failure to zero, it can be used in places without access to power sources.

The operating table offers many position adjustment options to adapt it to various types of surgical procedures.

  • Footrest inclination adjustment
  • Footrest parting and locking
  • Side tilt adjustment
  • Backrest adjustment
  • Kidney bench adjustment
  • Headrest adjustment
  • Trendelenburg and Reverse-Trendelenburg

Several types of tops available as options : 4-segment table top  , 4-segment segment table top with plate footrest  , 5-segment table top and 6-segment table top.

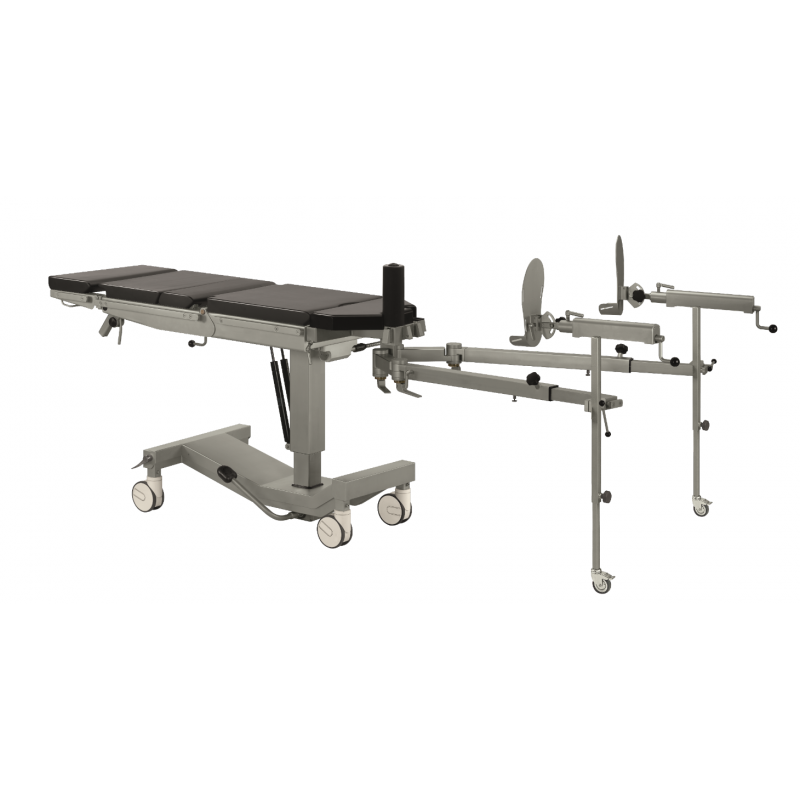

These different settings and accessories available make it a universal table allowing , an gynaecological position , an orthopaedic attachment , an translucency and accessibility for the C-arm , an neurosurgical attachment  and an laparoscopic position.

SPECIFICATIONS :

Dimensions : 206 x 55 cm

Adjustable height from 68 to 108 cm

Back rest segment inclinaison  : +85° , -40°

Thigh rest segment inclinaison: +45° , -90°

Trendelenburg position : 30°

Reverse -Trendelenburg position : 30°

Maximum load  : 200 Kg

several types of trays available as optionsThese different settings and accessories available make it a universal tableGynaecological positionBack rest segment inclination
