MO-100109-06

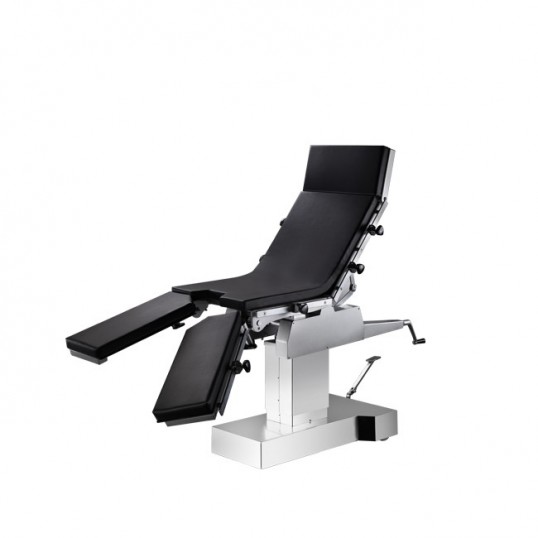

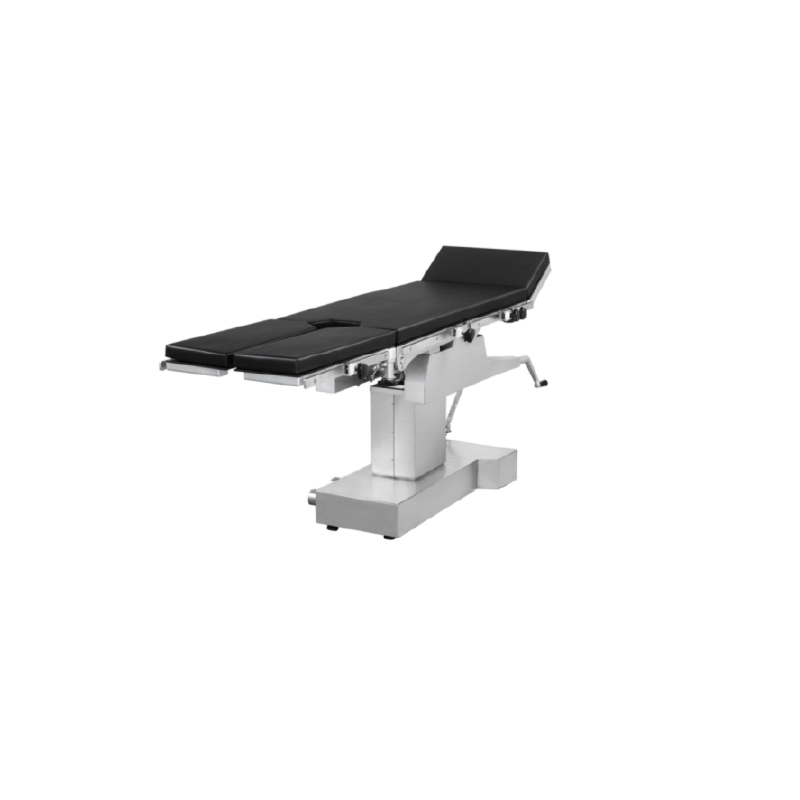

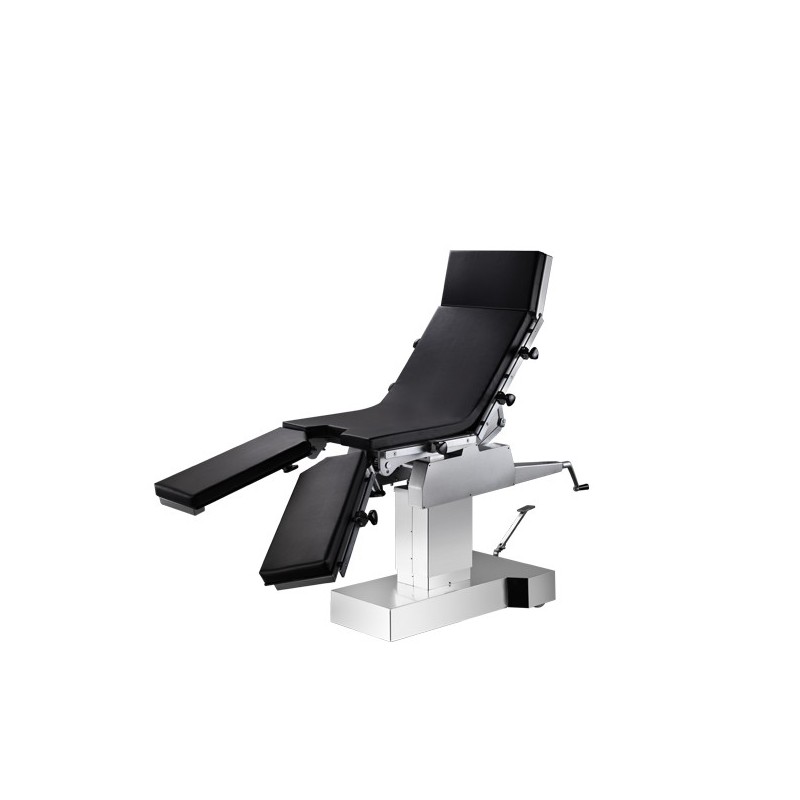

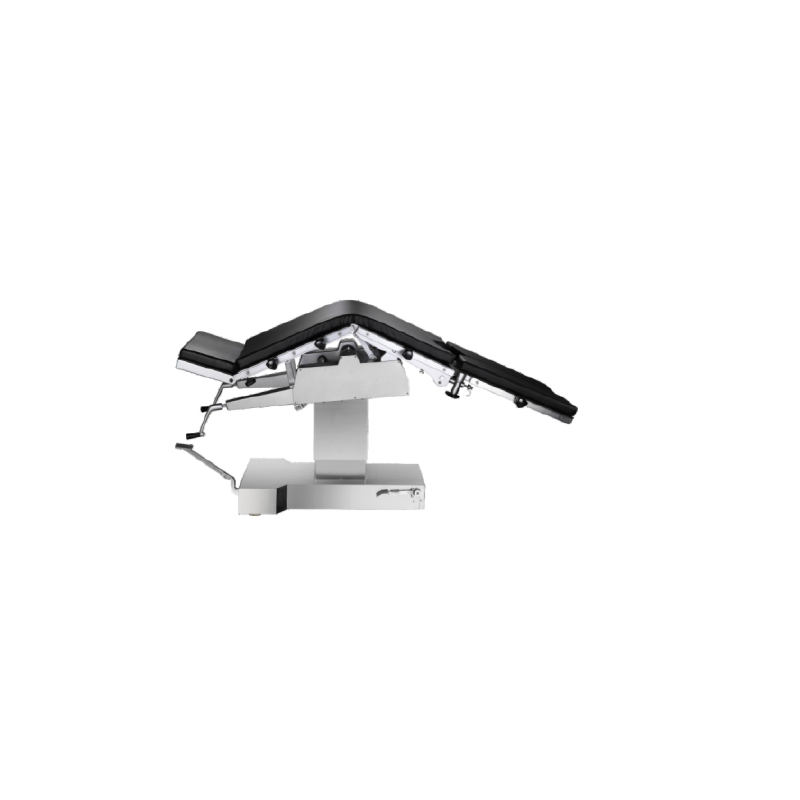

UNIVERSAL OPERATING TABLE

enables carrying out different positions - gynaecology, urology, laryngology, ENT, orthopaedics department

Length and width of table top : 1980mm/500mm

Lowest height of table top from the floor : 700mm

Height adjustment range : 200mm (max.)

Trendelenburg / Reverse trendelenburg : >20° (max.) / >18° (max.)

Lateral tilting : gauche >15° (max.) / droite >15° (max.)

Leg rest adjustment : vers le bas (max.) 85°  vers l'extérieur (max.) 90°

Back rest adjustment : vers le haut (max.)75°  vers le bas (max.) 10°

Head rest adjustment : vers le haut (max.)45°  vers le bas (max.) 50°

Kidney bridge elevating : (max.) 110mm



Delivred with : Anaesthetic frame MO-100100-02

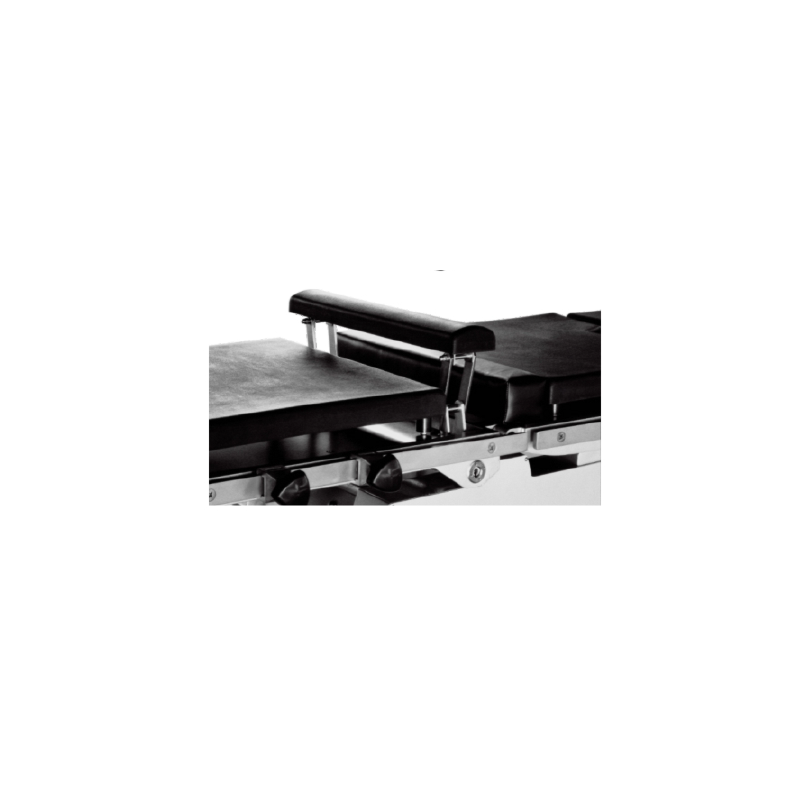

                      Pair of arm support MO-100100-06 (2x)

                      Pair of leg support     MO-100100-07 (2x)

                      Pair of shoulder support      MO-100100-08 (2x)

                      Side rest M0-100100-09

                      Pair of foot plate

                      Fixing clamps

Unavailable on the European market
