MO-106341-E3

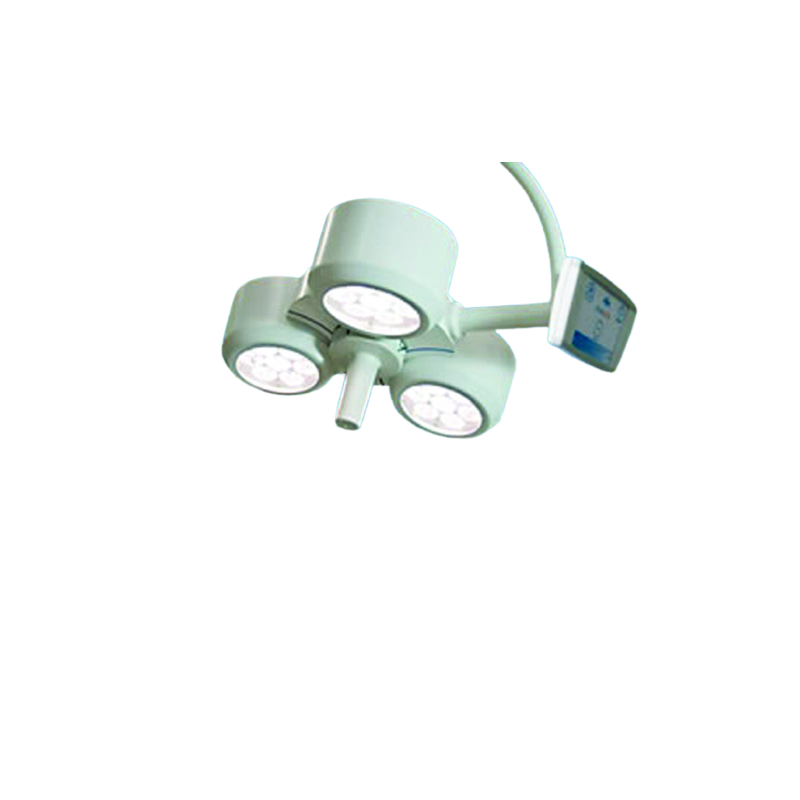

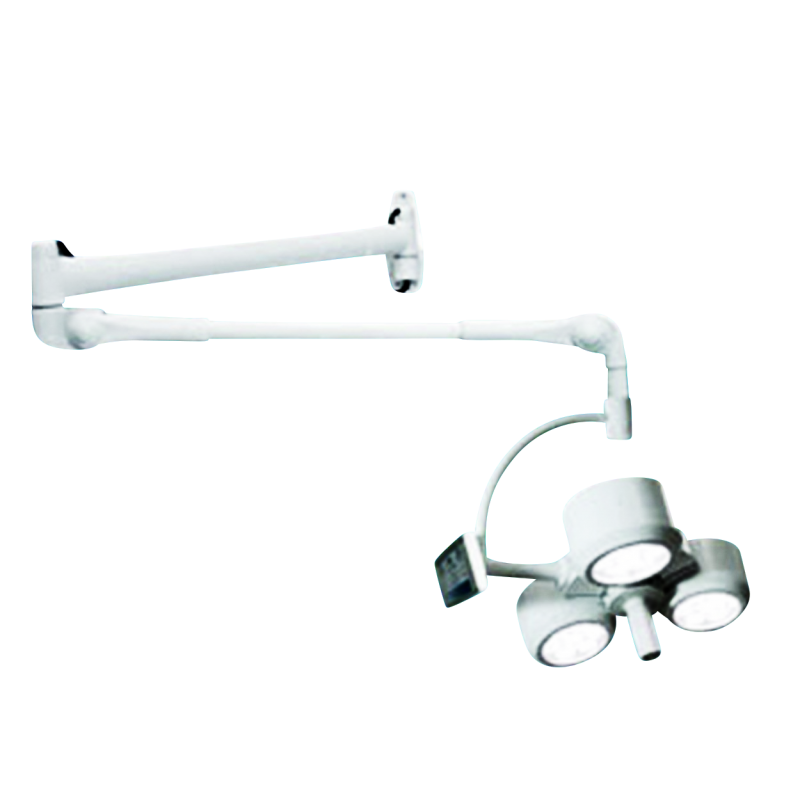

LED LIGHT WALL TYPE

• LEDs Average life: 50.000 hrs

• Lighting at the centre , at 100 cm: 130.000 lux

• Light adjustment from 100% to 10%

• Lighting area surface 148 cm2

• Colour temperature: 4.900 °K

• Colour rendering index( Ra): 95

• Light efficiency 70 lm/W

• Handle Removable, autoclavable

• IR irradiation 0.026 W/m2

• UV irradiation 0.022 W/m2

• Irradiation/Lighting Ratio 0.356 mW /m2*lux

• Light field dimension d50 at 100 cm 10 cm

• Light field dimension d10 at 100 cm 19 cm

• Focusable working distance 70-150 cm

• Lighting depth L1+L2 82 cm

• Light head diam.:44 cm

• Max overall light head rotation: 52 cm

• Color : White

• Power supply 100 - 240 vac +10% 50/60Hz

• Fixing plate included

• 1st part of the arm rotation of 180°

• 2nd part of the arm rotation of 360°

• I-SENSE digital control panel
