AP-103200-90

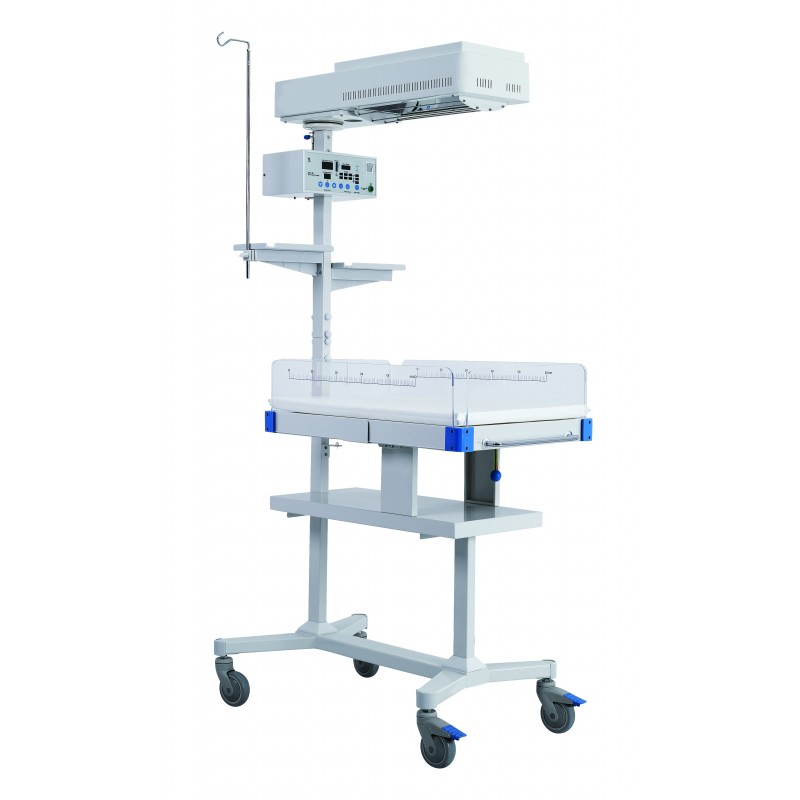

INFANT RADIANT WARMER
• Servo control: Skin T° of Baby, Air temp of bed
• Automatic / manual control
• Sensor for measure bed or skin temperature
• RS232 Connector for Monitor
• Light Touch control panel waterproof
•Separate display of temperature
• Timer including in controller
• Heating consumption 0-100%
• Radiator horizon angle adjustable in tow direction from 0 -90°C
• Bassinet tilting ± 15°
• X-ray tray under bassinet
• Far-infrared quartz tube as heater Rail of bed easy to move
Standard Accessories:
• Skin Sensor
• Examin light
• Hearter tube
• X-ray tray
• Power cord
• Operator manual
• Soft mattress
• Trolley stand
• Assembly tools
• Instrument shelf
• ABS rail of bed.
- 50
50 years of experience
Large distribution network
Quality technical services
More info
Technical specifications:
• Power Supply: 220V ± 10% , 50Hz ±10% or 110V ±10% ,60Hz ±2%
• Power rate: ≤ 1000va
Operating condition:
• Environment temperature 18°~30°C
• Relative humidity <80%
• Environment air flow speed
Temperature control:
• Bed T° controI range 25°C~37°C
• Skin T° controI range 34°C~37°C
• T° controI accuracy ± O.1°C
• Measure T° error ≤±O.3°C
• Mattress T° uniformity ≤2.0°C
• Temperature rise time ≤38 minutes
Alarms:
• Four kind failures Alarm identification , Audible and visible, when alarm active, automatic cut off power supply and display actual temperature
• Over Temperature Alarm: Activated actual temperature exceeds 38 °C.
• Temperature deviation alarm: Activated actual temperature 1°C departure the set point
• Sensor Alarm: Activated if sensor short circuit, open circuit or place out of right position
